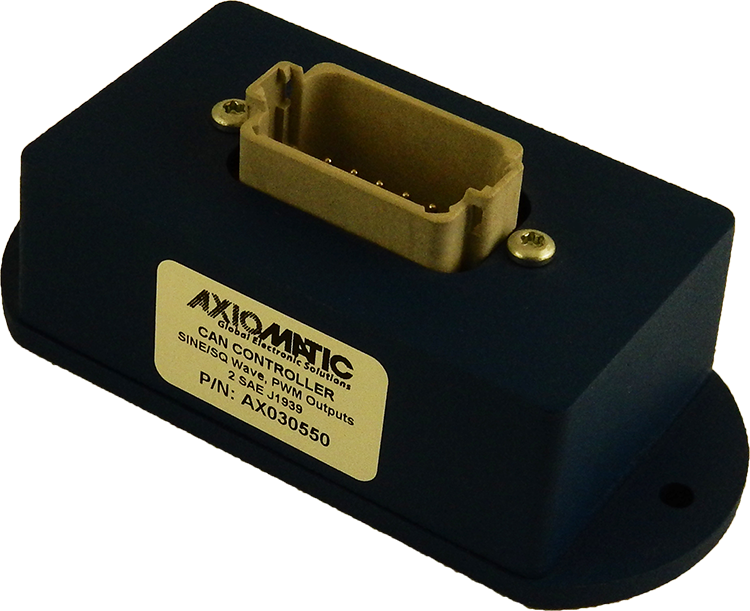

This controller has 2 isolated CAN (SAE J1939) ports. The signal output is configurable as SINE or Square wave (0-5V). It also provides a PWM output signal. The control has a rugged IP67 enclosure and connector. To configure the device, use the Electronic Assistant.
Applications
- Construction equipment trucks, interface between ECM and turbocharger
| Technical Specifications: | CAN to SINE/Square Wave Output and PWM Output Controller 2 SAE J1939 |
| Order Code: | P/N: AX030550 (SAE J1939 250 Kbps) Accessories P/N: AX070105 (Mating plug kit) P/N: AX070502 (Electronic assistant configuration) |
| Power: | 12 or 24Vdc nominal |
| SINE or Square Wave Output: | 1 Signal output configurable as: SINE wave Square wave Frequency is user selectable from 10 Hz to 20 kHz Minimum load 10 kΩ Amplitude: 5V peak-to-peak |
| PWM Output: | 1 PWM Output from 0 to 36Vps 1 Hz to 1 kHz Frequency Current limited to 200 mA |
| Reference Voltage | 1 +5V +/- 0.5%, 100 mA maximum |
| Communications: | SAE J1939 |
| Electrical Connections: | 12 pin TE IPD connector P/N: DT15-12PA |
| Enclosure: | Aluminum enclosure, Integral TE Deutsch connector, Encapsulation 4.750 x 2.150 x 1.802 inches 120.66 x 54.61 x 45.77 mm (L X W X H) |
| Protection Rating: | IP67 |
| Operating Conditions: | -40 to 85°C (-40 to 185°F) |
| User Interface: | Electronic Assistant AX070502 |
| PDF Datasheet: |  Click icon for PDF datasheet . |
