DC-DC converters can provide stable DC supply when installed on battery-powered vehicles or generator sets. Battery taps can be avoided and sensitive equipment is protected.
Power Regulation
The DC converter regulates power to sensitive electronics.
Isolation
Isolation from battery power is often necessary for critical loads.
24VDC/24VDC Power Conversion
Power from a vehicle battery is conditioned at the same voltage level and isolation is provided to protect onboard electronic devices.
Step Up or Step Down Power Conversion
Voltage is stepped to a higher or lower level to supply the appropriate power to auxiliary devices such as lights, horns and other accessories.
Purchasing Notes
Application Notes
All converters can be ordered with mating wire harness as a kit.
See the datasheet for the KIT part number.
24V/24V and 12V/12V DC Converters
Step Up Power Converters
Step Down Power Converters
24V/24V and 12V/12V DC Converters
AX080900
AX081100B
AX081500
AX081530
AX083120
Isolated
P/N: SMP-BAC-V06-24VDC-01
KIT P/N: PSU1K
24VDC to 24VDC, 120 Watts, Isolated Power Converter

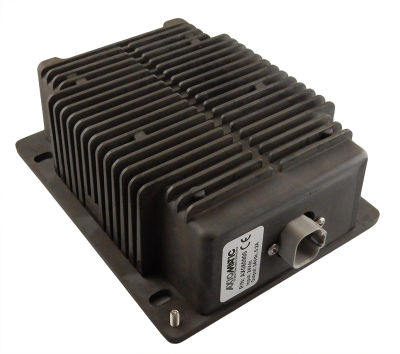

P/N: AX080900
KIT P/N: AX080900K
24VDC to 24VDC, 125 Watts Isolated Power Supply

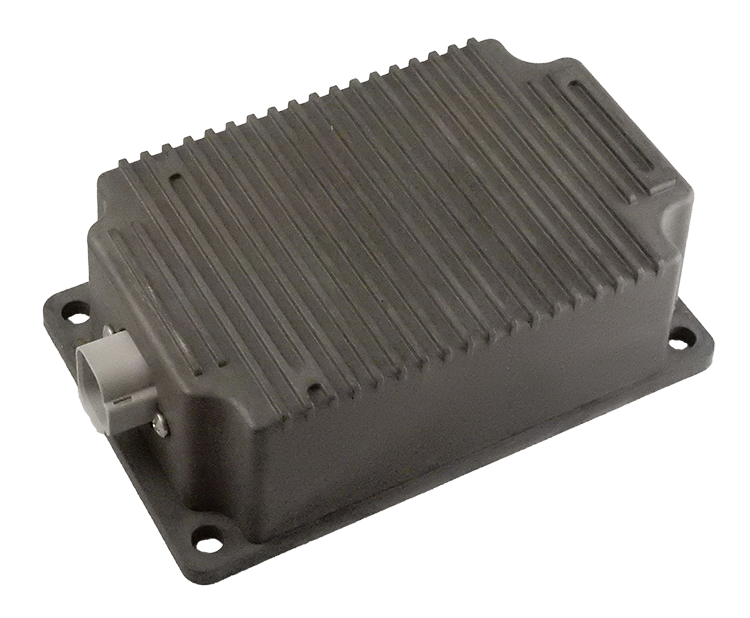

P/N: AX081100B
KIT P/N: AX081100BK
(12VDC) 24VDC to 24VDC, 72 Watts Isolated DC/DC Converter
P/N: AX081500
KIT P/N: AX081500K
24VDC to 24VDC, 312 Watts Isolated Power Converter
P/N: AX081530
KIT P/N: AX081530K
9-36VDC to 24VDC, 240 Watts Isolated Power Converter
P/N: AX081570
KIT P/N: AX081570K
6-16VDC to 12VDC, 180 Watts, Isolated DC/DC Converter
P/N: AX083120
KIT P/N: AX083120K
12VDC to 12VDC, 48 Watts Isolated Power Converter
Step Up Power Converters
SMP-BAC-V06-24VDC-01
AX083100
AX083110
AX083130
AX080151
AX081540
AX082200
AX083500
AX081600
Isolated
P/N: SMP-BAC-V06-24VDC-01
KIT P/N: PSU1K
12VDC to 24VDC, 120 Watts Isolated Power Converter
P/N: SMP-BAC-24VDC-48VDC
KIT P/N: PSU4K
24VDC to 48 VDC, 144 Watts Isolated Power Converter
P/N: AX080900
KIT P/N: AX080900K
24VDC to 24VDC, 125 Watts Isolated Power Converter
P/N: AX081580
KIT P/N: AX081580K
24VDC to 72VDC, 300 Watts, Isolated

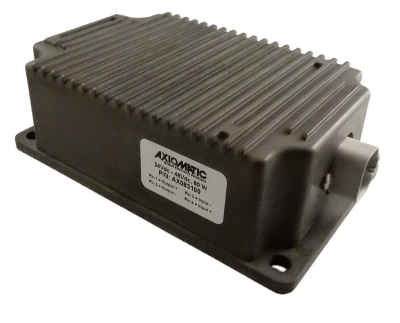

P/N: AX083100
KIT P/N: AX083100K
24VDC to 48VDC, 60 Watts Isolated Power Converter

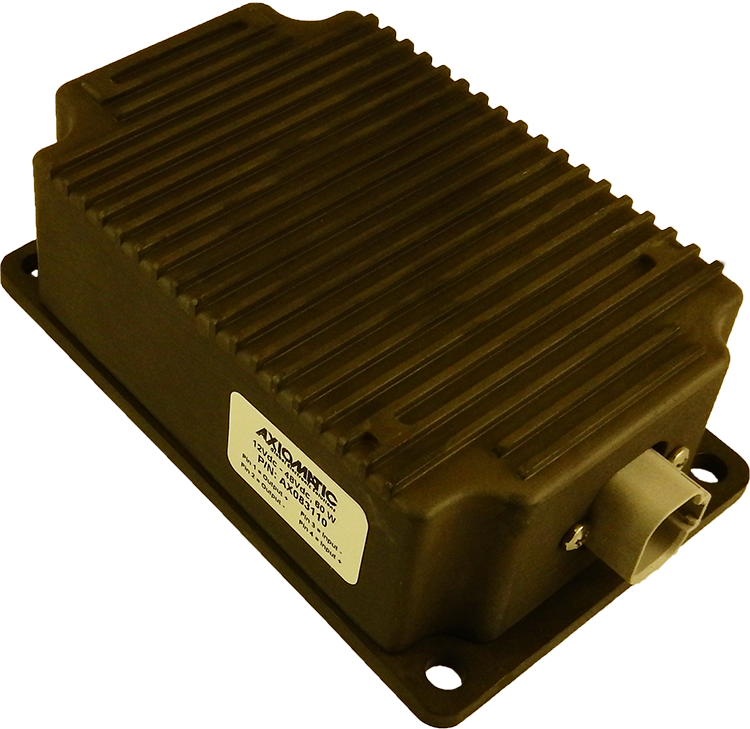

P/N: AX083110
KIT P/N: AX083110K
12VDC to 48VDC, 60 Watts Isolated Power Converter

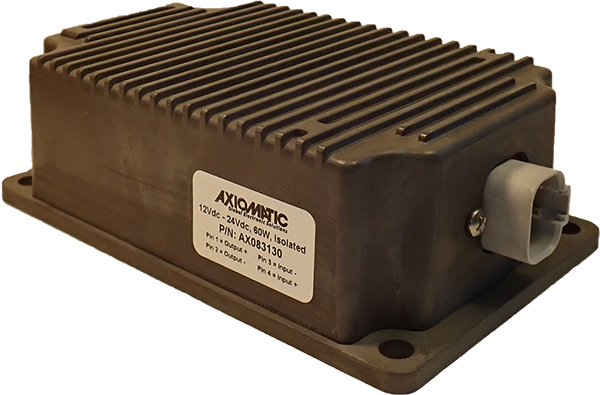

P/N: AX083130
KIT P/N: AX083130K
12VDC to 24VDC, 60 Watts Isolated Power Converter

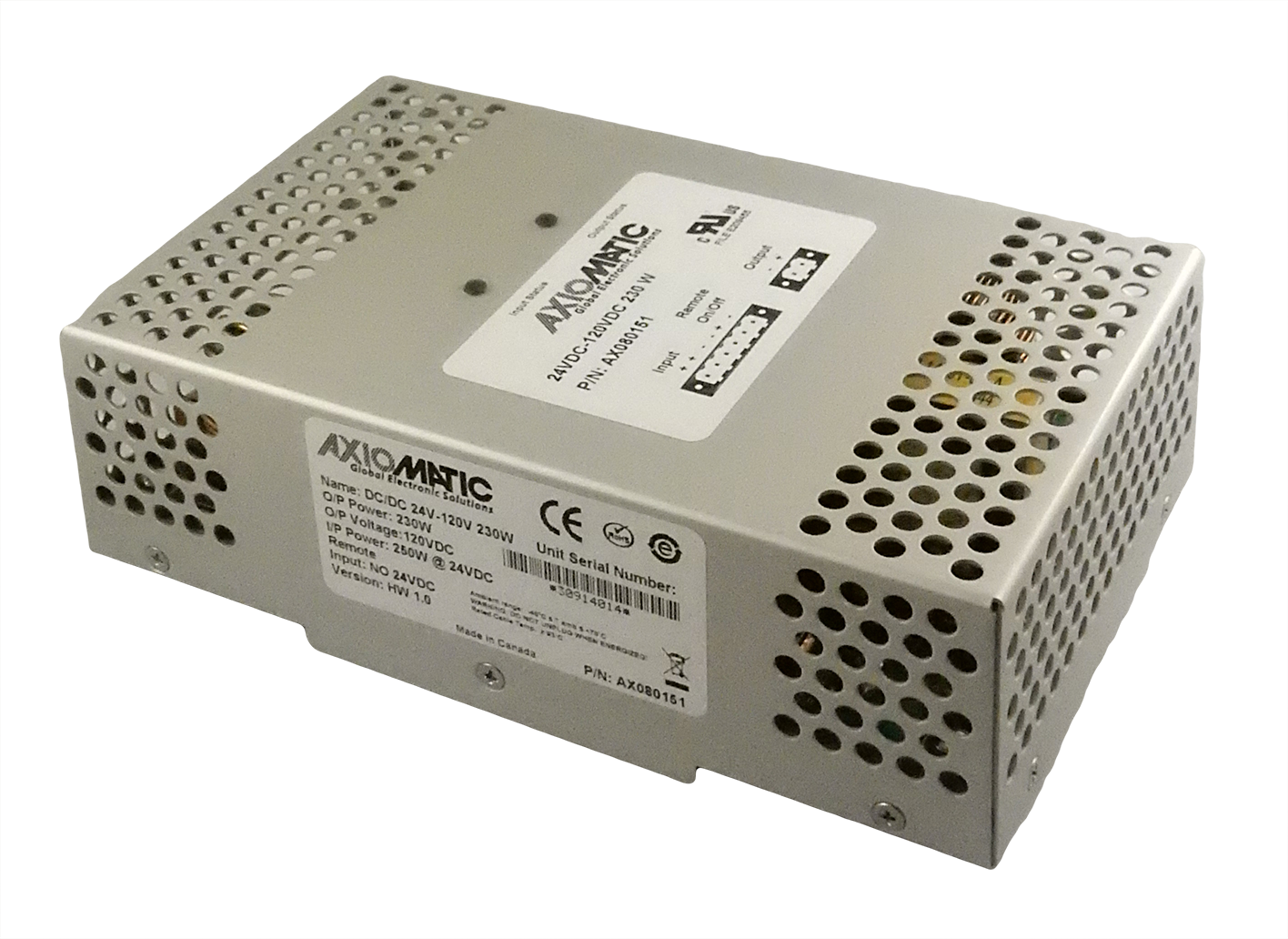

P/N: AX080151
24VDC to 120VDC, 230 Watts, DIN rail mount
P/N: AX080160
24VDC to 140VDC, 230 Watts, DIN rail mount

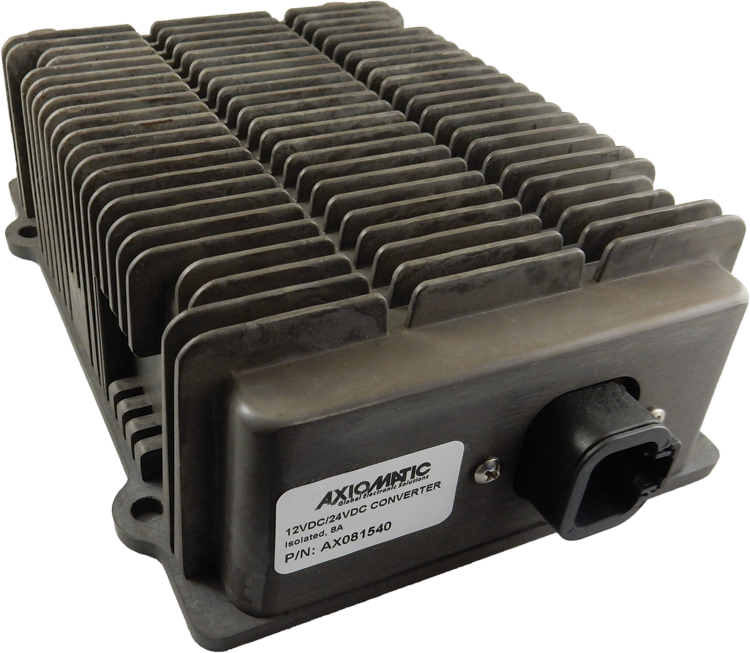

P/N: AX081540
KIT P/N: AX081540K
12VDC to 24VDC, 192 Watts, Isolated DC/DC Converter

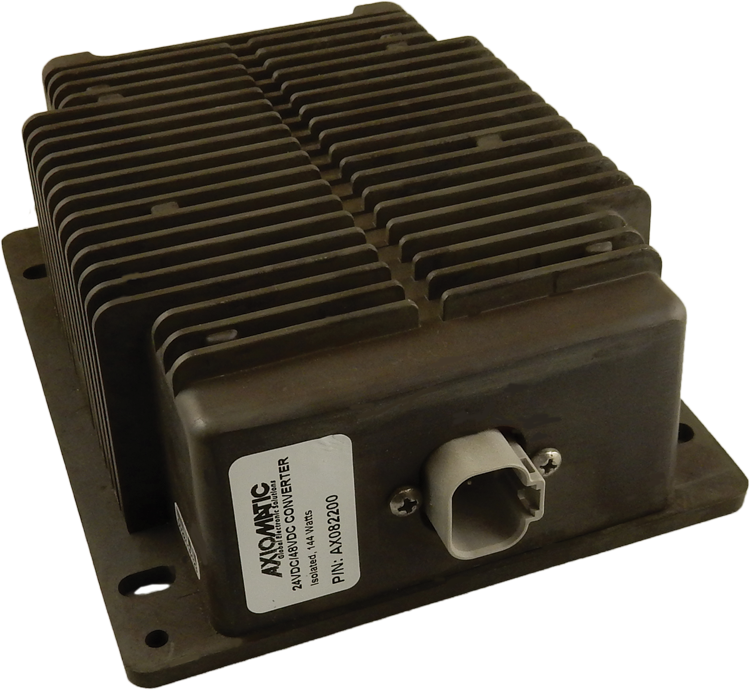

P/N: AX082200
KIT P/N: AX082200K
12VDC or 24VDC to 48VDC, 144 Watts, Isolated DC/DC Converter
P/N: AX083500, AX083501
24VDC to 120VDC, 30 Watts, Isolated, DIN rail mount Power Supply
Non-Isolated

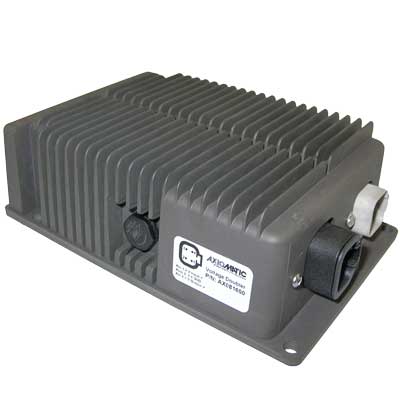

P/N: AX081600
KIT P/N: AX081600K
12VDC to 24VDC Voltage Doubler (1-10A Output, 1-1A Switched Output)
P/N: AX083800
KIT P/N: AX083800K
12VDC to 25DC Voltage Converter, 750W, Isolated Power Converter
Step Down Power Converters
AX081152

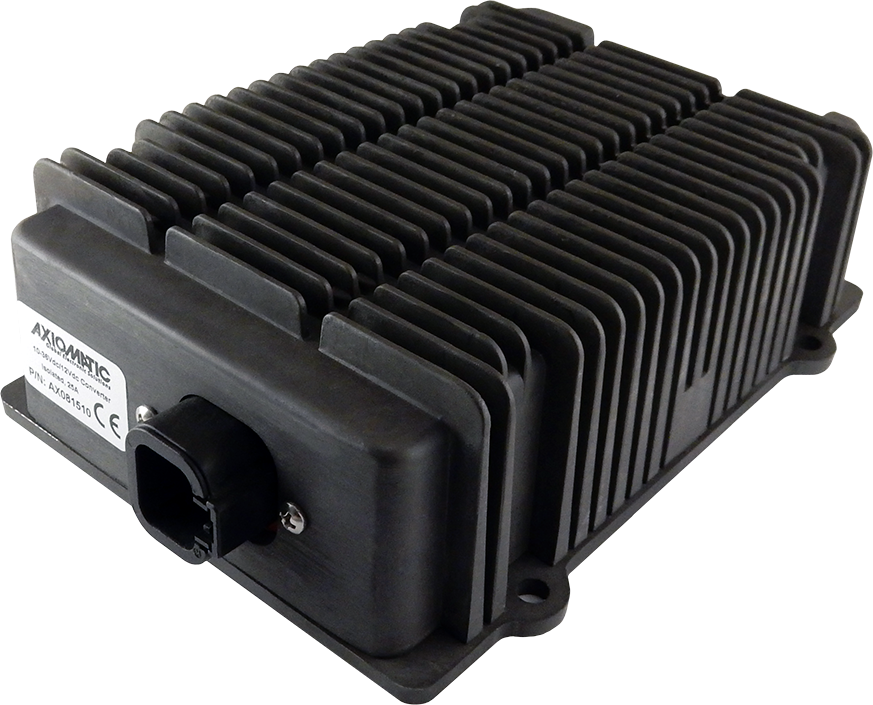

AX081510
AX081520
AX081550
AX083201

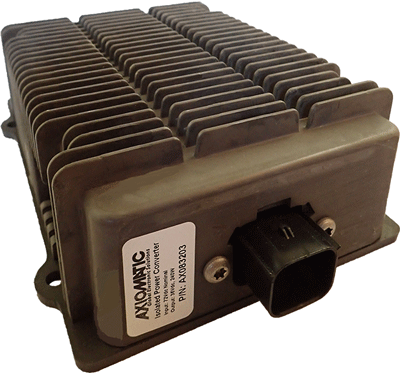

AX083203
AX081801

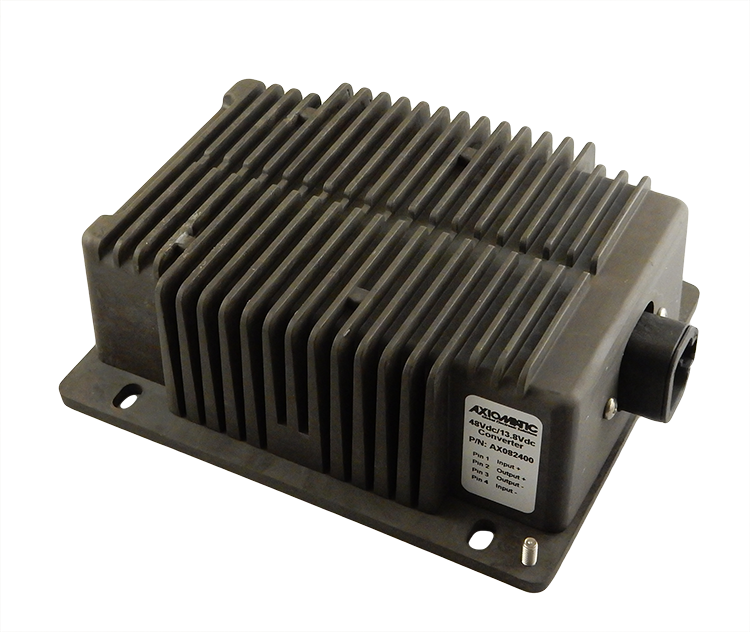

AX082400
