An inclinometer measures the angles of slope, elevation or inclination of an item with respect to gravity. For precise rotational angle measurement, a resolver element integrated with Axiomatic advanced electronics can measure rotational angle and speed.
Axiomatic’s accurate and durable sensors are used worldwide in very harsh environments.
In addition to off-the-shelf products, Axiomatic can provide an OEM solution to meet your design project requirements.
Purchasing Notes
Application Notes
SAE J1939
CANopen®
SAE J1939
AX060700
AX060810
AX060830
AX060900
AX060910
AX061000
Inclinometers
P/N: AX060201 - superseded by AX060830
Inclinometer, CAN SAE J1939, 2 M12 Connectors
P/N: AX060202 - superseded by AX061000
CAN SAE J1939, Inclinometer, 3 Analog Outputs
P/N: AX060400 - superseded by AX060810
SAE J1939, Inclinometer, 1 DT15-4P Connector
P/N: AX060401 - superseded by AX060811
SAE J1939, Inclinometer, 1 DT15-4P Connector, Internal CAN termination

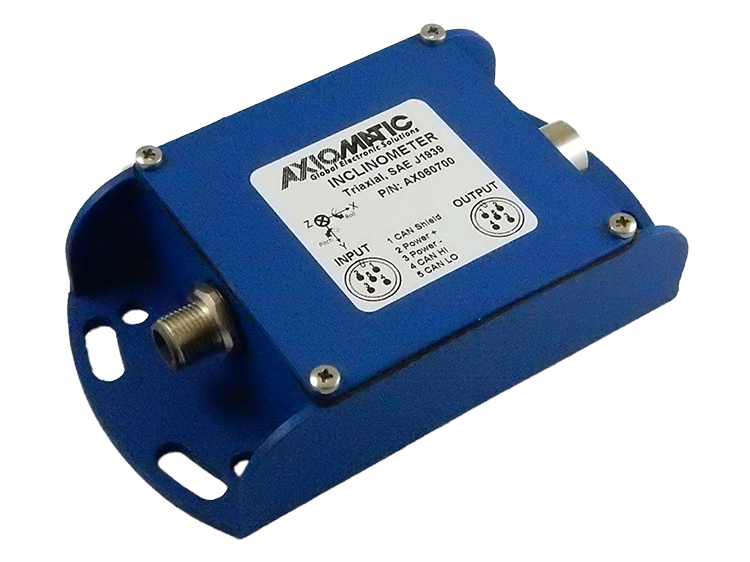

P/N: AX060700 - superseded by AX060900
SAE J1939, Triaxial Inclinometer with 1 Gyroscope
P/N: AX060800 - superseded by AX060830
SAE J1939, Triaxial Inclinometer, 2 M12 Connectors

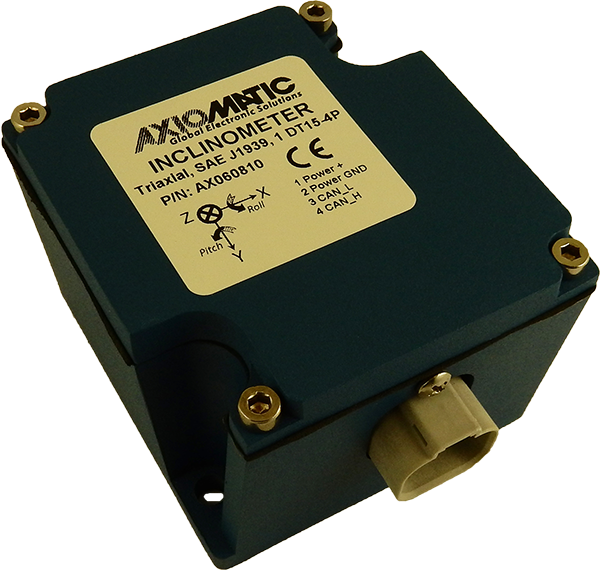

P/N: AX060810, AX060811
SAE J1939, Triaxial Inclinometer, DT15-4P Connector
P/N: AX060830
SAE J1939, Triaxial Inclinometer, 2 M12 Connectors
P/N: AX060900, AX062008
SAE J1939, Triaxial Inclinometer, Triaxial Gyro Sensor, 2 M12 Connectors
P/N: AX060910, AX062018
SAE J1939, Triaxial Inclinometer, Triaxial Gyro Sensor, 2 M12 Connectors
P/N: AX061000
SAE J1939, Triaxial Inclinometer, Signal Outputs, 2 M12 Connectors
CANopen®
AX060835
AX060841
AX060911
Inclinometers
P/N: AX060001 - superseded by AX060851
2 Axis Inclinometer, ± 85º, CANopen®, 1 PG11 Strain Relief
P/N: AX060250 - superseded by AX060835
CANopen® Inclinometer, 2 M12 Connectors
P/N: AX060450 - superseded by AX060840
CANopen®, Inclinometer, 1 DT15-4P Connector
P/N: AX060451 - superseded by AX060841
CANopen®, 1 DT15-4P Connector, Internal CAN Termination
P/N: AX060835
CANopen® Triaxial Inclinometer, 2 M12 Connectors

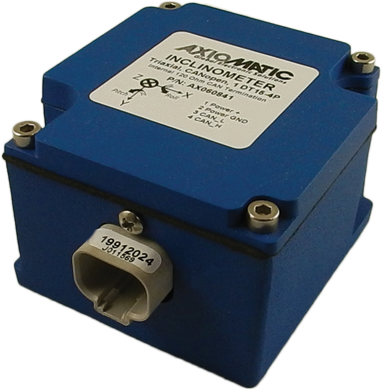

P/N: AX060840, AX060841
CANopen®, Triaxial Inclinometer, 1 DT15-4P Connector
P/N: AX060851
CANopen®, Triaxial Inclinometer, 1 PG-11 Strain Relief
P/N: AX060911
CANopen, Triaxial Inclinometer, Triaxial Gyro Sensor
AXRES-CO
Resolver Modules
P/N: AXRES-CO Series
Measures angular displacement and speed over 360°, CANopen®
AX060150
