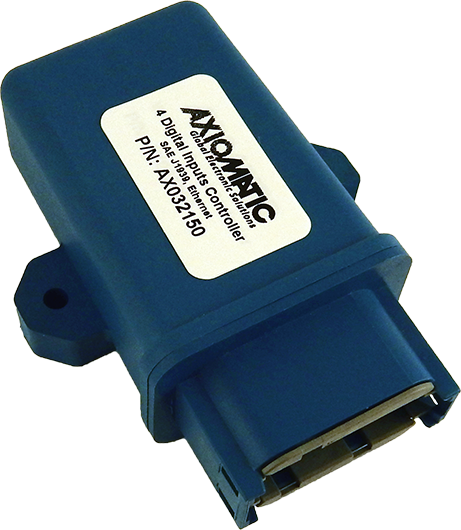

The 4 Digital Inputs Controller features an Ethernet port, SAE J1939 CAN port, and 4 Digital signal inputs. It offers IP67 protection, and is configurable via Electronic Assistant or via Ethernet.
Applications
- Control panels
- Machine automation
| Technical Specifications: | 4 Digital Inputs Controller CAN (SAE J1939), Ethernet |
| Order Code: | P/N: AX032150 (4 Digital Inputs Controller, Ethernet, SAE J1939, 250 kbps) |
| Power: | 12 Vdc or 24 Vdc nominal 9…36 Vdc power supply range |
| Inputs: | 4 Digital Signal Inputs |
| Control logic: | Refer to the user manual |
| Communications: | 1 CAN port (SAE J1939) Model: AX032150 – 250 kbps baud rate |
| Electrical Connections: | Integral TE Deutsch 12 pin receptacle (P/N: DTM04-12PA) |
| Enclosure: | Molded Enclosure, integral connector Nylon 6/6, 30% glass Ultrasonically welded 3.54 x 2.75 x 1.31 inches (90.09 x 70.00 x 33.35 mm) L x W x H including integral connector |
| Protection Rating: | IP20 |
| Operating Conditions: | -40 to 85°C (-40 to 185°F) |
| User Interface: | Web Interface Electronic Assistant AX070502 |
| PDF Datasheet: |  Click icon for PDF datasheet. |
