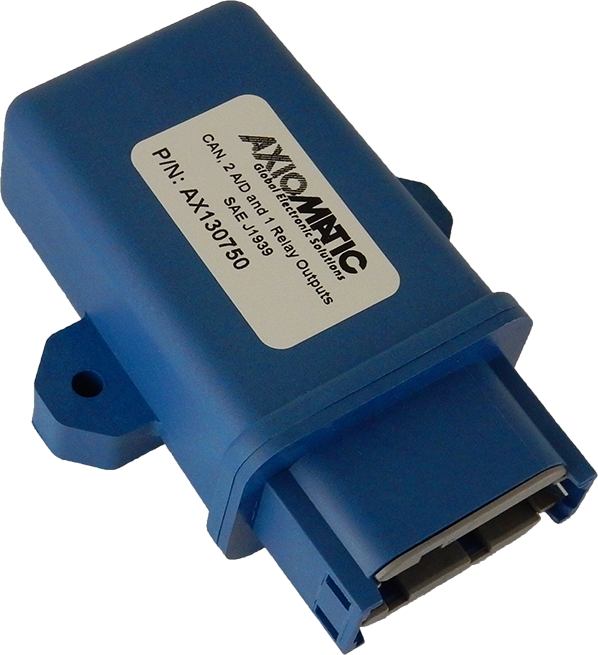

The CAN to 2 Analog/Digital and 1 Relay Outputs Converter features 2 Analog/Digital signal outputs configurable as: 0-5V; 0-10V; 4-20 mA; Frequency or PWM Signal as well as 1 Relay output. Networking is via 1 isolated SAE J1939 port. It is Operational 9…36 Vdc (12 Vdc or 24 Vdc). The controller meets the surge requirements of SAE J1445, and is designed for EMC compliance for engine applications. Configuration is with the Axiomatic Electronic Assistant.
Applications
- Throttle controls for marine engine applications
- Diesel engine applications
| Technical Specifications: | CAN to 2 Analog/Digital Signals and 1 Relay Output Converter SAE J1939 |
| Order Code: | P/N: AX130750 (CAN to A/D and Relay Outputs Converter, 250 kbps Isolated SAE J1939) P/N: AX130750-01 (CAN to A/D and Relay Outputs Converter, 500 kbps SAE J1939) P/N: AX130750-02 (CAN to A/D and Relay Outputs Converter, 1 Mbps SAE J1939) |
| Power: | 12 V or 24 Vdc nominal; 9…36 Vdc The minimum allowable supply voltage for the power pin is 7 Vdc. |
| Signal Outputs: | 2 Analog/Digital signal outputs configurable as: 0-5V; 0-10V; 4- 20 mA; Frequency or PWM Signal. |
| Relay Output: | 1 Relay Output |
| Control Logic: | Pre-programmed with standard logic. |
| Communications: | 1 CAN (SAE J1939) AX130750: 250 kbps baud rate AX130750-01: 500 kbps baud rate AX130750-02: 1 Mbps baud rate |
| User Interface: | Electronic Assistant AX070502 |
| Electrical Connections: | Integral TE Deutsch 12 pin receptacle (P/N: DTM13-12PA-R008) |
| Enclosure: | Molded Enclosure, integral connector Nylon 6/6, 30% glass Ultrasonically welded 3.54 x 2.75 x 1.31 inches (90.09 x 70.00 x 33.35 mm) L x W x H including integral connector |
| Protection Rating: | IP67 |
| Operating Conditions: | -40 to 85°C (-40 to 185°F) |
