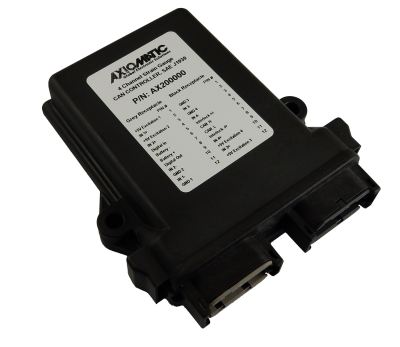

The 4 Channel Strain Gauge CAN controller accepts up to four 4-wire strain gauge connections. The input range is user selectable from +/- 19.5 mV to +/- 2.5 Vdc. It interfaces with the machine’s CAN network (SAE J1939). The measurement rate is 2.5 scans per second and the update rate is 400 ms for all 4 channels. Standard embedded software is provided. Rugged IP67 rated packaging and a power supply input of 12Vdc or 24Vdc nominal suits applications in the harsh environment of mobile equipment with on-board battery power. All setpoints are user configurable using the Electronic Assistant. Model AX200300 includes wire break detection.
Applications
- Off-highway Construction Equipment
- Forestry Mining and Military Vehicles
- Cranes
- Material Handling Equipment
| Technical Specifications: | 4 Channel Strain Gauge CAN Controller |
| Order Code: | P/N: AX200000 |
| Power: | 12 or 24Vdc nominal supply range |
| Inputs: | 4-wire Strain Gauges The input range is user selectable from +/- 19.5 mV to +/- 2.5 Vdc. 1 Digital Input |
| Outputs: | 1 Digital On/Off Output 1 Interlock (Relay) Output |
| Control Logic: | Standard embedded control logic is provided. User programmable functionality using Electronic Assistant® |
| Communications: | 1 CAN port (2.0B, SAE J1939) |
| Enclosure: | High Temperature Nylon housing - Deutsch IPD PCB Enclosure (EEC-325X4B) 4.62 x 5.24 x 1.43 inches 117.42 x 133.09 x 36.36 mm (W x L x H excluding mating plugs) |
| Protection Rating: | IP67 |
| Operating Conditions: | -40 to 85°C (-40 to 185°F) |
| PDF Datasheet: |  Click icon for PDF datasheet. |
