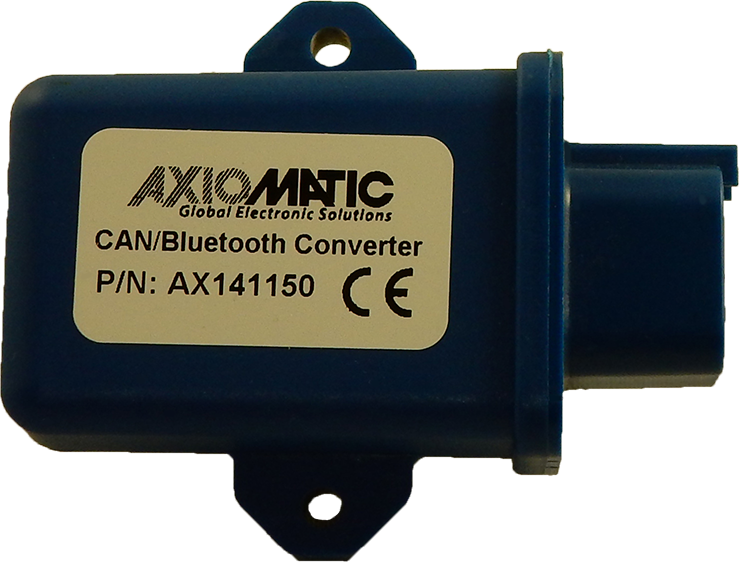

The CAN-Bluetooth Converter transfers wireless data to a PC, smartphone, display or tablet. The setpoints are configurable using the CAN2BT Configuration Android smartphone application or an Apple iOS application. SAE J1939 is the CAN bus protocol; however, the CAN-Bluetooth Converter also handles CAN frames with standard ID’s.
Applications
- On-Highway Vehicles
- Off-Highway Equipment
| Technical Specifications: | AX141150: CAN-Bluetooth Converter |
| Order Codes: | P/N: AX141150 (250 kbps baud rate SAE J1939) P/N: AX141150-01 (500 kbps baud rate SAE J1939) P/N:AX141150-02 (1 Mbps baud rate SAE J1939) P/N: AX070119 (Mating Plug Kit) |
| Ports: | 1 CAN port (SAE J1939) |
| Bluetooth: | Bluetooth LE V4.1 compliant |
| Operating voltage: | 12VDC or 24VDC or 48VDC (6...80 VDC) |
| Protection: | Reverse polarity protection is provided Overvoltage protection up to 88V is provided |
| Enclosure and Dimensions: | Molded Enclosure, Ultrasonic welded Nylon 6/6, 30% glass Integral 6-pin connector 3.030 x 2.413 x 1.314 inches 77.0 x 61.3 x 33.4 mm (L X W X H) |
| Electrical connections: | 6 pin TE Deutsch connector P/N: DT04-6P |
| Protection Rating: | IP67 |
| Operating conditions: | -30 to +85 (-22 to 185 °F) |
| Compliance: | CE marking |
| User Interface: | CAN2BT Configuration Android smartphone application or an Apple iOS application (not supplied). |
| PDF Datasheet: |  Click icon for PDF datasheet TDAX141150. |
