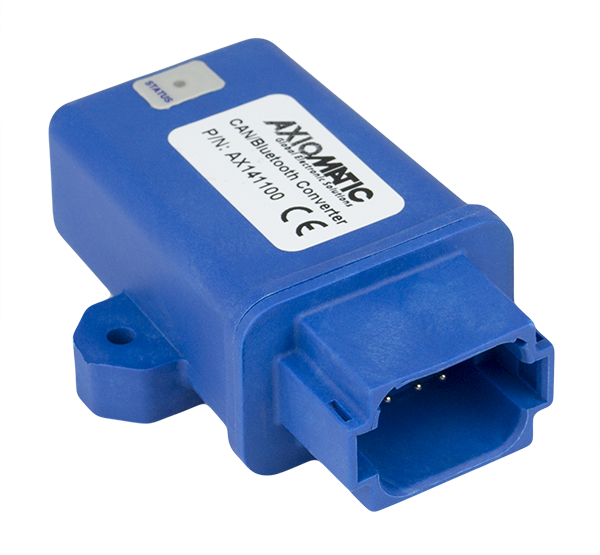

The CAN-Bluetooth Gateway transfers wireless data to a PC, smartphone, display or tablet. It features an RTC with 4 Gbit of flash memory. The setpoints are configurable using the CAN2BT configuration Android smartphone application. Additionally, the controller includes a configurable dual LED. SAE J1939 is the CAN bus protocol.
Applications
- On-Highway Vehicles
- Off-Highway Equipment
| Technical Specifications: | AX14110: CAN-Bluetooth Gateway with RTC |
| Order Codes: | P/N: AX141100 (SAE J1939 CAN-Bluetooth Gateway) P/N: AX070112 (Mating Plug Kit :1 DT06-08SA, 1 W8S, 8 0462-201- 16141, 3 114017) |
| Ports: | 1 CAN port (SAE J1939) |
| Bluetooth: | Bluetooth LE V4.1 compliant |
| RTC: | Real Time Clock back up power 96 hours 4 Gbit Flash Memory |
| Operating voltage: | 12VDC or 24VDC nominal (8...60 VDC) |
| Protection: | Reverse polarity protection is provided Overvoltage protection up to 88V is provided. |
| Enclosure and Dimensions: | Molded Enclosure, integral connector Nylon 6/6, 30% glass, Ultrasonically welded 3.47 x 2.75 x 1.31 inches (88.2 x 70.0 x 33.3 mm) L x W x H including integral connector |
| Electrical connections: | Integral TE Deutsch 8 pin receptacle (P/N: DT04-08PA) |
| Protection Rating: | IP67 |
| Operating conditions: | -30 to +85°C (-22 TO 185℉) |
| Compliance: | CE marking |
| User Interface: | CAN2BT configuration Android smartphone application |
| PDF Datasheet: |  Click icon for PDF datasheet for TDAX141100. |
