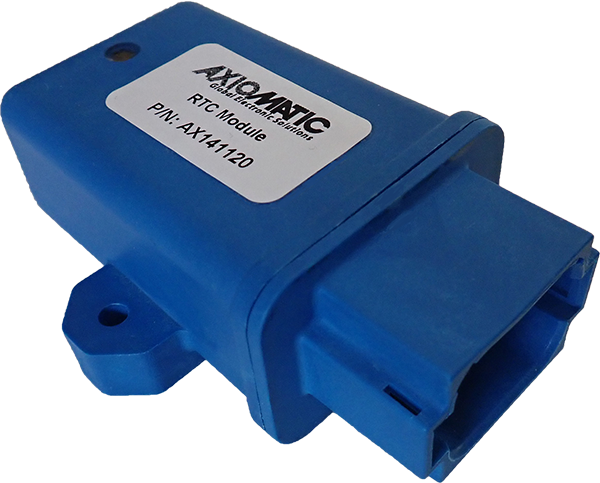

The RTC Module permits time and date information with a battery backed up Real-Time-Clock (RTC). It has one universal signal input and SAE J1939 CAN bus or 2 CANopen® bus ports. The universal input can interface with a command signal (0-5V; 0-10V; 4-20 mA; Frequency or PWM) or it can serve as “clock synchronization” trigger. For example, the RTC date and time could only be set when the input is triggered. The battery backup permits 15 years of operation. Power is 12V, 24V or 48Vdc nominal. The controller is ruggedly packaged for harsh operating environments.
Applications
- Industrial Cranes
- Heavy equipment
| Technical Specifications: | RTC Module: 1 Universal Signal Input, 2 SAE J1939 or 2 CANopen® |
| Order Codes: | P/N: AX141120 (RTC Module, 2 SAE J1939 (250 kbps) ) P/N: AX141121 (RTC Module, 2 CANopen®) Accessories: P/N: AX070112 (Mating Plug Kit for Model AX141120 and AX141121) P/N: AX070502 (Electronic Assistant for Model AX141120) EDS File (for Model AX141121) |
| Input: | 1 Universal input signal (Voltage, Current, PWM, or Digital) |
| Ports: | Model AX141120: 2 CAN (SAE J1939) Model AX141121: 2 CANopen® |
| Operating Voltage: | 12V, 24V or 48Vdc nominal; 8…90 Vdc |
| Protection: | Surge protection Reverse polarity protection |
| Enclosure and Dimensions: | Molded Enclosure, integral connector Nylon 6/6, 30% glass Ultrasonically welded 3.47 x 2.75 x 1.31 inches (88.2 x 70.0 x 33.3 mm) L x W x H including integral connector |
| Electrical Connections: | Integral TE Deutsch 8 pin receptacle (P/N: DT04-08PA) PIN # FUNCTION: 1 CAN1_L 2 CAN1_H 3 CAN2_L 4 CAN2_H 5 UI_RET 6 UI 7 BATT+ 8 BATT- |
| Protection Rating: | IP67 |
| Operating Conditions: | -40 to 85°C (-40 to 185° F) |
| User Interface: | Electronic Assistant (P/N: AX070502) |
| PDF Datasheet: |  Click icon for PDF datasheet for AX141120. Click icon for PDF datasheet for AX141121. |
