The inclinometer is designed to accurately measure inclination angles in three directions X, Y and Z in the range of ±180º. If vertically installed, it can measure an inclination angle in one sensing direction in the 0-360º range.
The angles are measured by a three-axis MEMS sensor, which senses acceleration caused by the gravity force in three orthogonal directions. The output signals from the MEMS sensor are normalized and processed by a microcontroller. The resolved angles can be then sent to the SAE J1939 fieldbus.
All application programming is performed through SAE J1939 CAN interface by the PC-based Axiomatic Electronic Assistant software.

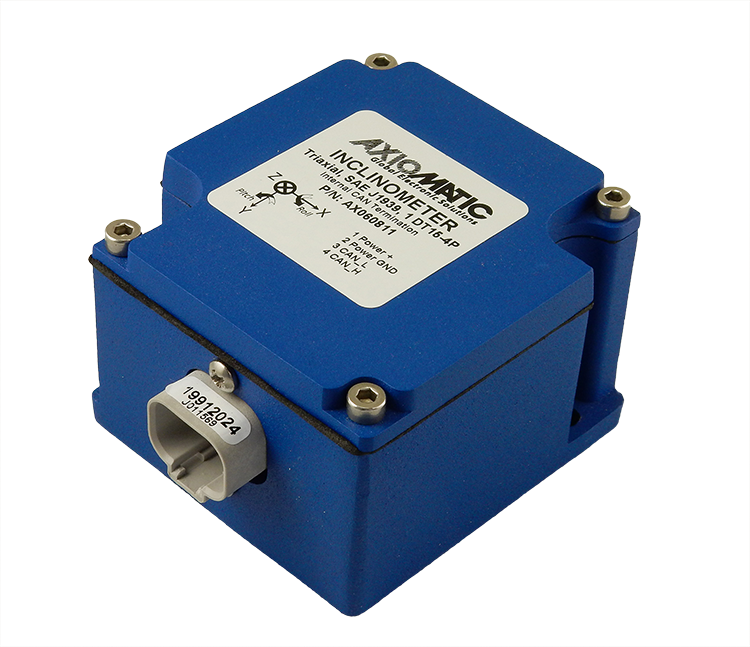

The inclinometer is IP67 rated and is packaged in a cast Aluminum housing with 1 TE Deutsch p/n DT15-4P connector.
Applications
- Industrial Automation, Cranes, Hoists, Utility Vehicles, Off-highway, Ag, and Forestry Equipment
| Technical Specifications: | Inclinometer with DT15-4P Connector (SAE J1939) |
| Order Codes: | P/N: AX060810 – Inclinometer, SAE J1939, 1 TE Deutsch DT15-4P Connector P/N: AX060811 – Inclinometer, SAE J1939, Internal CAN Termination, 1 DT15-4P Connector |
| Measurement Range: | User configurable Three Axes: -180º…180º (0…360º) |
| Outputs: | Pitch and roll angles on the CAN network |
| Operating Voltage: | 12V, 24V nominal |
| Communications: | 1 CAN port, SAE J1939 CANopen models are available (P/N: AX060450 or AX060451). |
| User Interface: | User programmable functionality using Axiomatic Electronic Assistant |
| Enclosure: | Cast Aluminum enclosure with gasket, Encapsulated 1 TE Deutsch p/n DT15-4P connector 3.34 x 3.14 x 2.18 inches 84.8 x 79.8 x 55.5 mm (L x W x H) |
| Protection Rating: | IP67 |
| Operating Conditions: | -40 to 85°C (-40 to 185°F) |
| PDF Datasheet: |  Click icon for PDF datasheet. |
